The .NET code execute Trigger is able to execute .NET code written using languages C# or VB.NET and then monitor the resulting output.

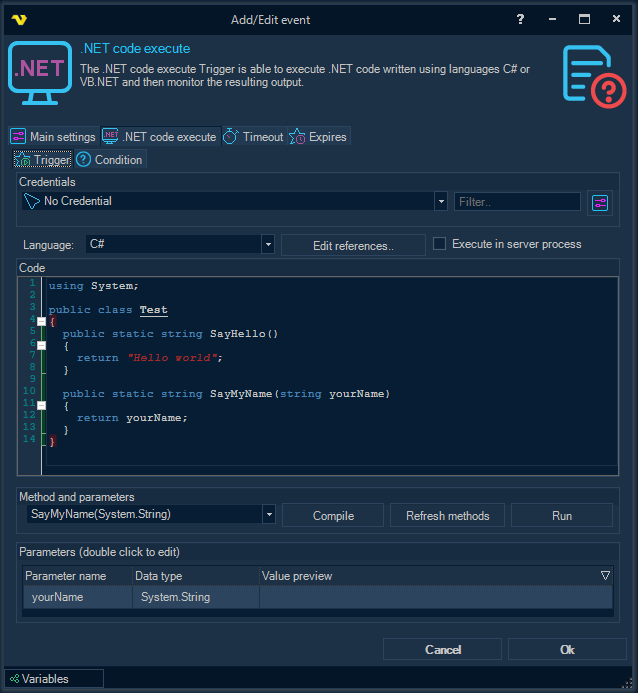

Triggers > Add > Event Trigger > .NET code execute > .NET code execute tab > Trigger sub tab



The composition and purpose of all the parameters that are available inside the Trigger sub tab fully corresponds to the description of the parameters from the topic, which describes the .NET code execute Task.

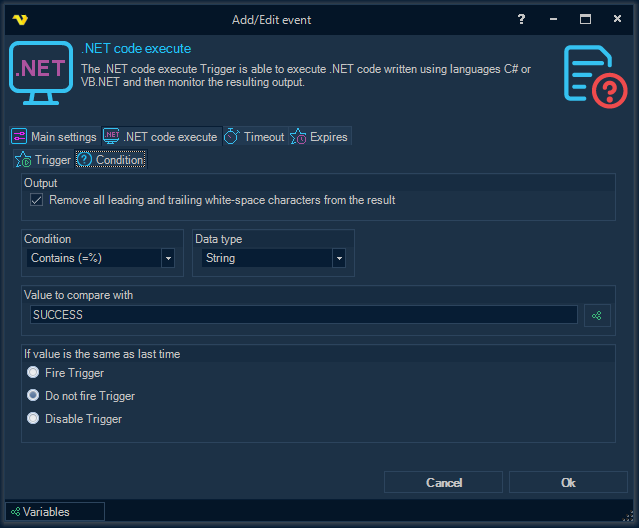

.NET code execute tab > Condition sub tab



Remove all leading and trailing white-space characters from the result

All leading and trailing white-space characters are removed from the .NET code execution output before the condition is checked.



Condition

Select the comparison method.



Data type

Select the result data type and the value to compare with.



Value to compare with

Enter a value/Variable to compare the result with. Click the Variables icon to open the the Variables list.



If value is the same as last time

You can control what happens if the same value comes two times in a row. By default the Trigger fire each time the Condition is met.





.NET code execute Trigger Result Variables



MatchedValue

The string representation of the matched value from the .NET code execution output.
