The VisualCron Connection stores connect and logon properties for connecting internally between Clients and Servers. This is used to control Jobs/Tasks on other servers.



The VisualCron Connection is used in the Internal - Job/Task control Task and the Event trigger - VisualCron Trigger. The Connection is used to connect to a local or remote VisualCron Server instance.

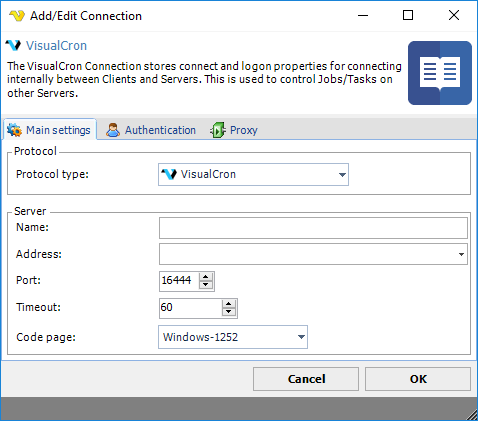

Manage Connections > Add > VisualCron > Main settings tab

ConnectionVisualCronMain



Name

The unique name for the Connection.



Address

The DNS name or IP of the VisualCron server.



Port

The port used by VisualCron - default 16444.



Timeout

The connection timeout in seconds. Connection will fail after this time period.



Code page

Not used.

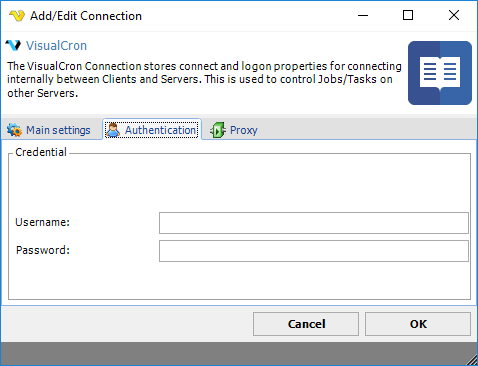

Manage Connections > Add > VisualCron > Authentication tab

ConnectionVisualCronAuthentication



Username

The username for the user in the VisualCron Server.



Password

The password for the user in the VisualCron Server.

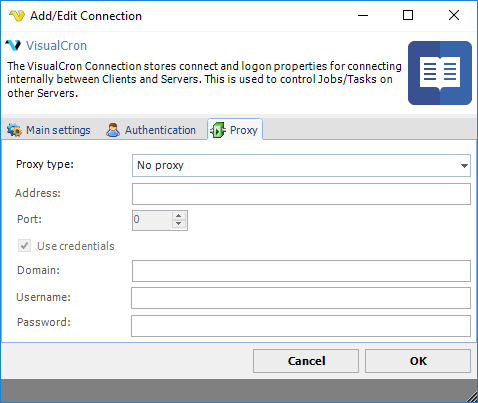

Manage Connections > Add > VisualCron > Proxy tab

ConnectionVisualCronProxy



Proxy type

The FTP implementation supports the HTTP proxy type and the SFTP implementation supports the SOCKS4 and SOCKS5 proxy types.



Address

Host name or IP number of the proxy server.



Port

Port of the proxy server.



Use credentials

Text ...



Username

A username to access the proxy server.



Password

A password to access the proxy server.
