The SharePoint Connection stores connect and logon properties for local SharePoint instances or the SharePoint online cloud service from Microsoft.



The SharePoint Connection is used for the SharePoint Tasks:

SharePoint - Create list

SharePoint - Delete list(s)

SharePoint - Describe list

SharePoint - Get list(s)

SharePoint - Update list

SharePoint - Add list item

SharePoint - Update list item

SharePoint - Delete list item(s)

SharePoint - Get list item(s)

SharePoint - Upload file(s)

SharePoint - Download file(s)

SharePoint - List file(s)

SharePoint - Delete file(s)

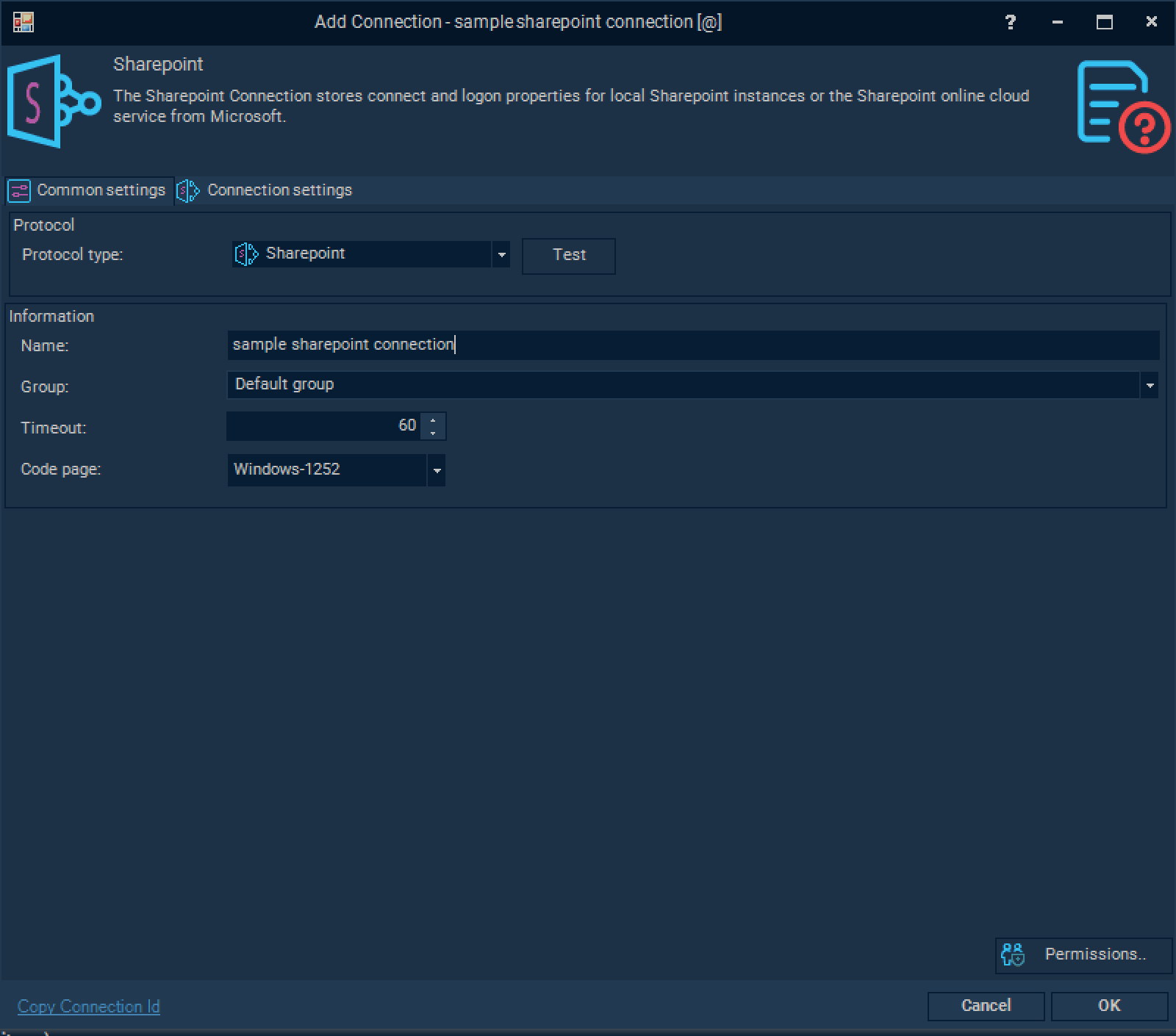

Manage Connections > Add > SharePoint > Common settings tab



clip333444086



Name

The unique name for the Connection.



Group

Connection's group name.



Timeout

The connection timeout in seconds. Connection will fail after this time period.



Code page

Code page being used.

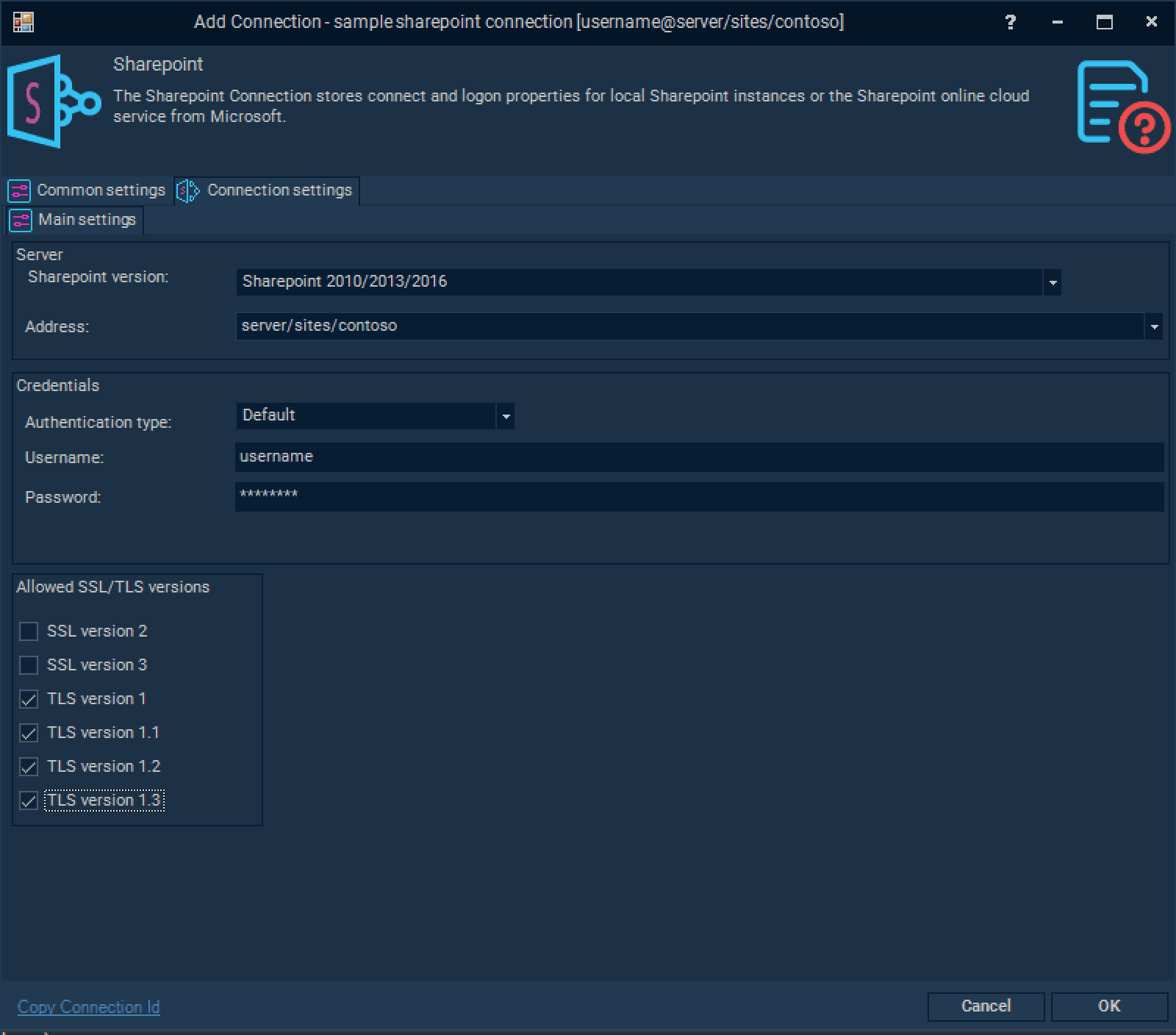

Manage Connections > Add > SharePoint > Connection settings tab



clip333444087





SharePoint version

Select between SharePoint Online or a local installation (SharePoint 2010/2013/2016),



Address

SharePoint site's address (either on-premises or online).



Authentication type

Select type of authentication on the SharePoint server. Default (Windows), Basic, Anonymous or Forms.



Username

The username for the server.



Password

The password for the server.

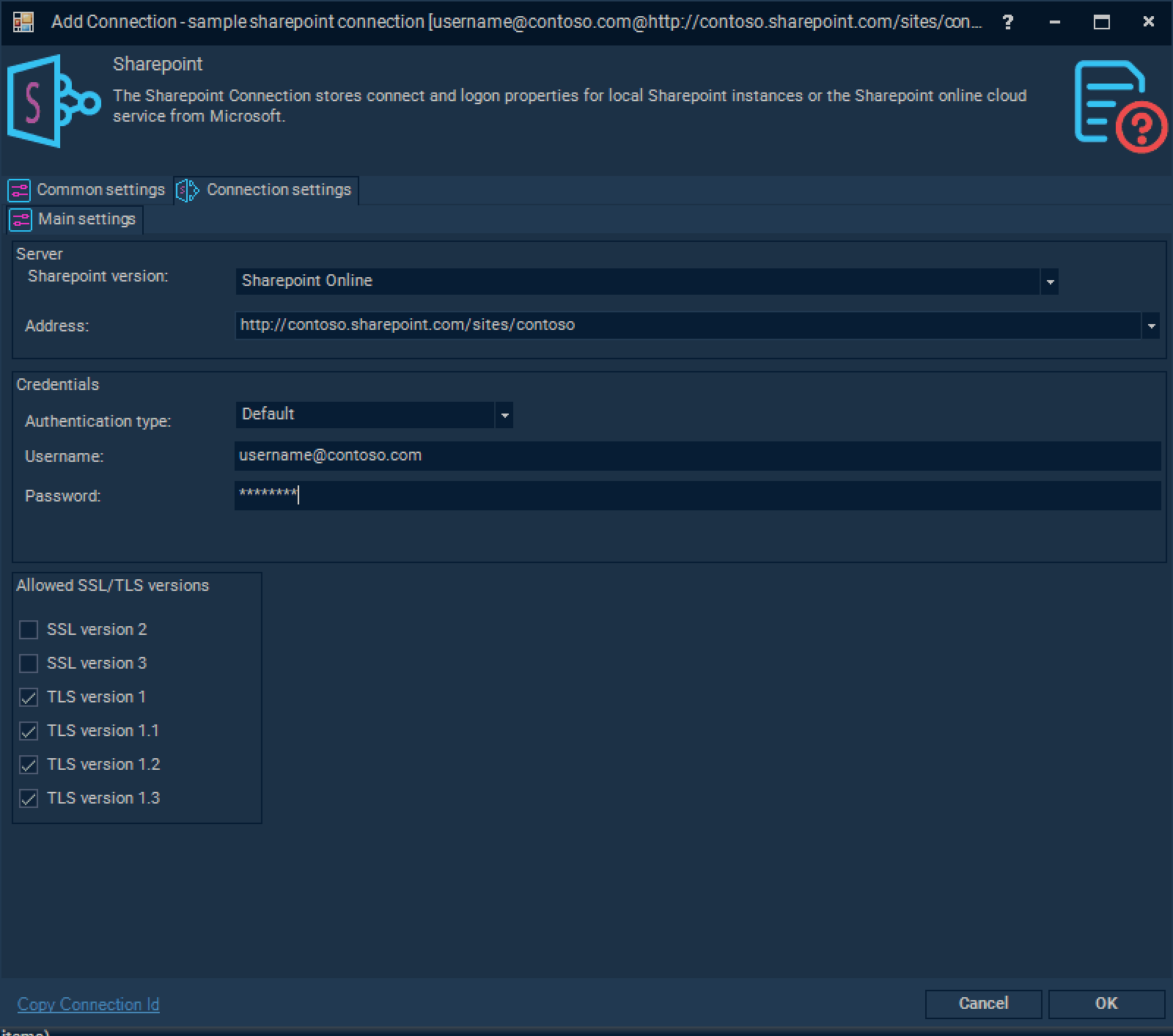

SharePoint Online Instance



clip333444088



Username

SharePoint Online Credentials username



Password

SharePoint Online Credentials password

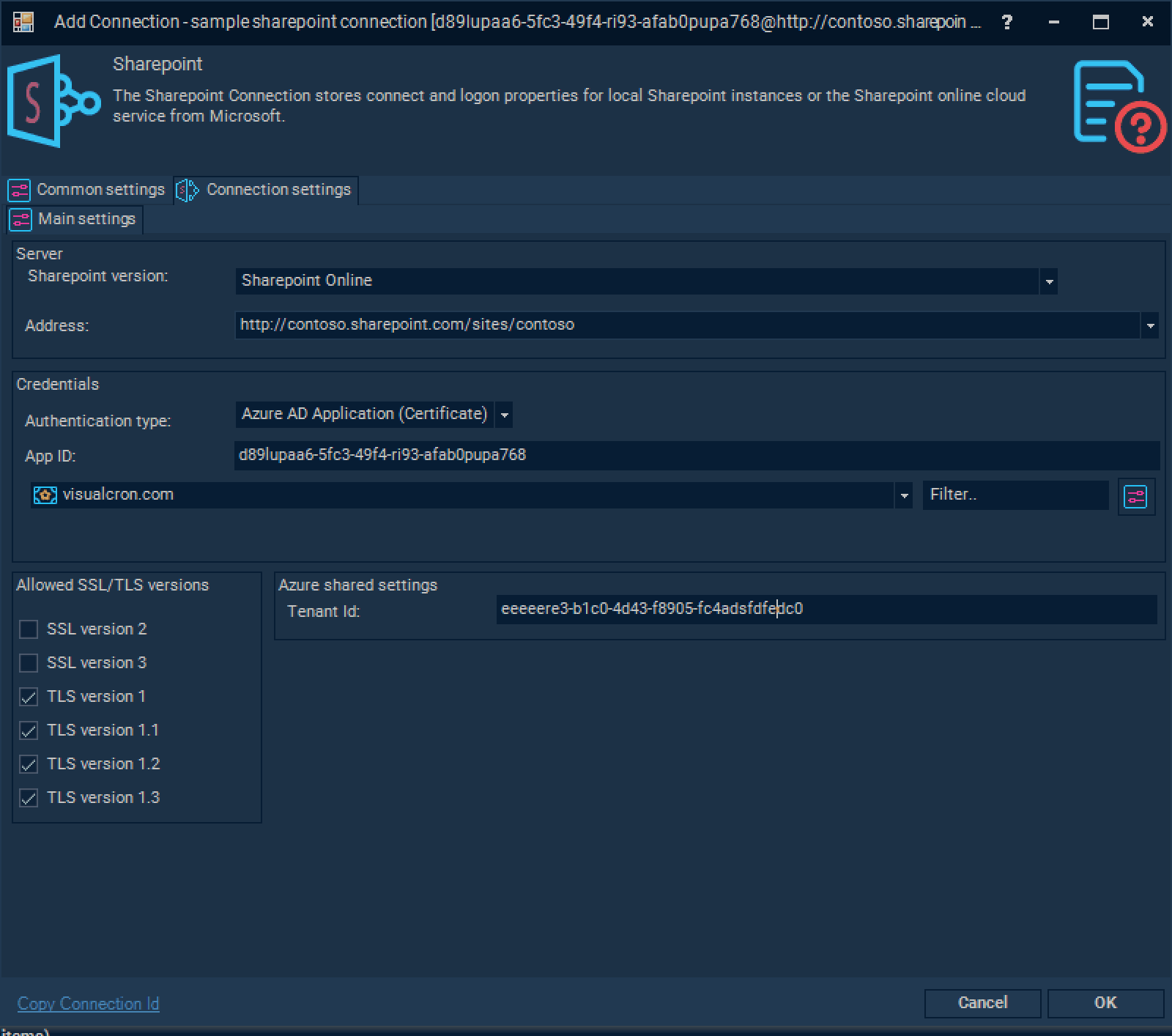

clip333444089



Username

Application ID.



Password

Application Secret.

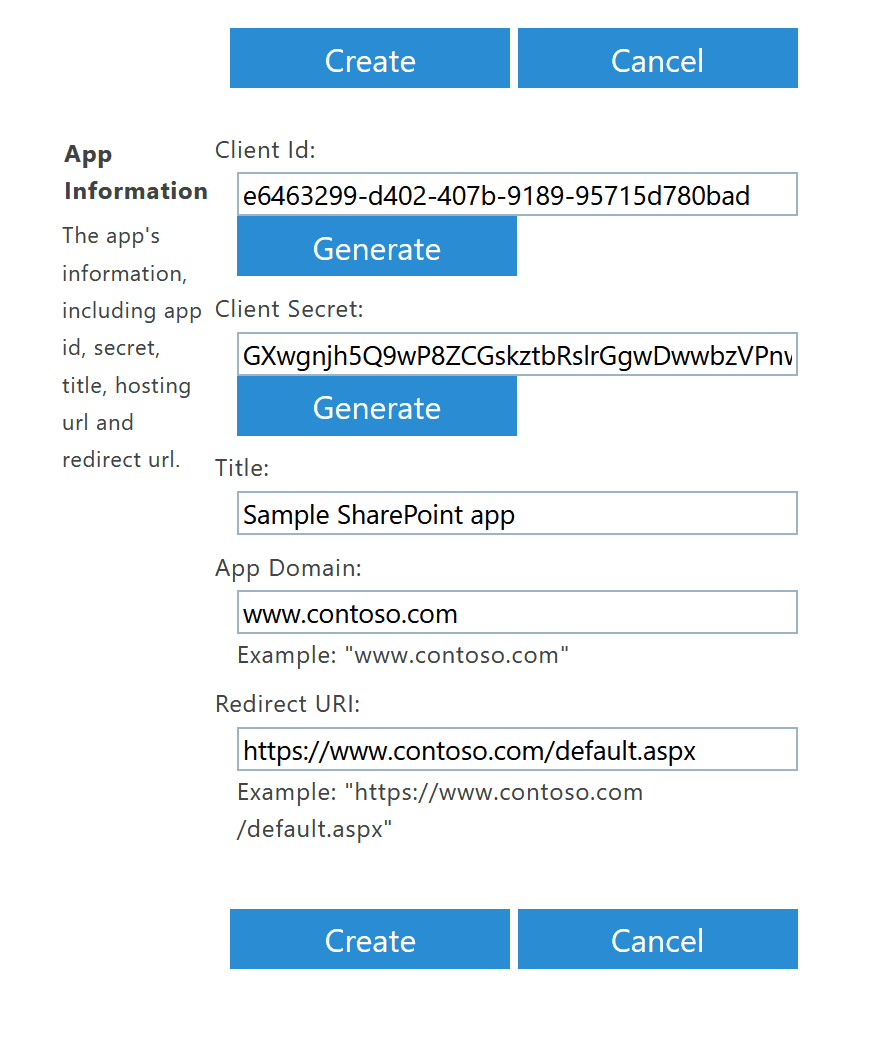

New application can be registered using following URL of you SharePoint site's admin section https://xxx-admin.sharepoint.com/_layouts/15/AppRegNew.aspx, where xxx is you tenant name.

You can use existing application from your Azure AD registered applications on your Azure Tenant.

clip333444090





Please note Client Id and Client Secret information to be filled in the Connection for this Authentication type.

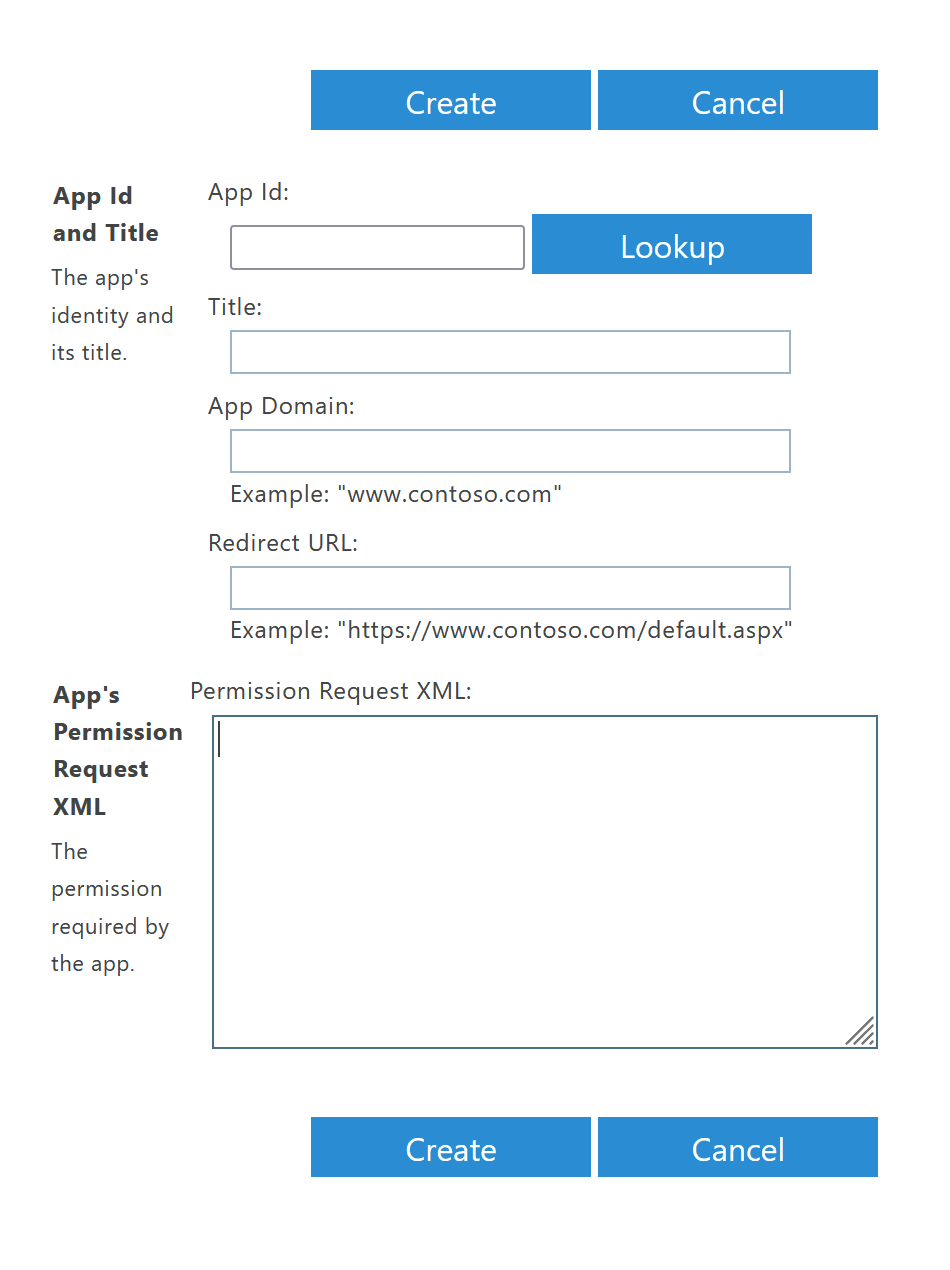

During next step you should give your app all necessary permissions to access your site. This can be done using URL https://xxx-admin.sharepoint.com/_layouts/15/AppInv.aspx



clip333444091



Please fill in Client Id press Lookup to get your app's information here. Be sure to provide correct permissions, information about permissions and scope can be found here

Full access permission to all sites at your tenant looks like this:

<AppPermissionRequests AllowAppOnlyPolicy="true">

  <AppPermissionRequest Scope="http://sharepoint/content/sitecollection" Right="FullControl" />

</AppPermissionRequests>



clip333444092

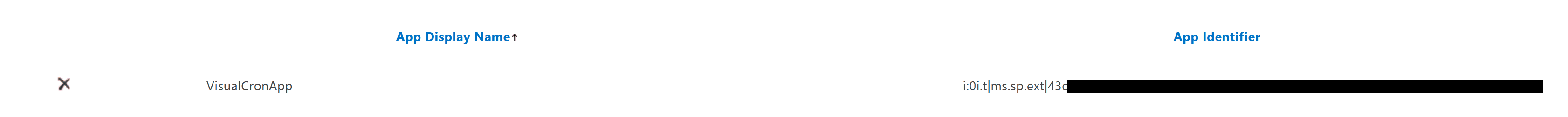

You can view registered applications using URL https://xxx-admin.sharepoint.com/_layouts/15/AppPrincipals.aspx



clip333444093



You can use existing or new Azure AD application to access your SharePoint Online sites. Please note that certificate only credentials are accepted. Create application on Azure AD and import certificate to both Azure AD application credentials and VisualCron. Only Certificate applications will be granted to access SharePoint site, otherwise you will be getting HTTP 401 error. More information about AppOnly and Certificates could be found here (with Powershell script sample generating a certificate).

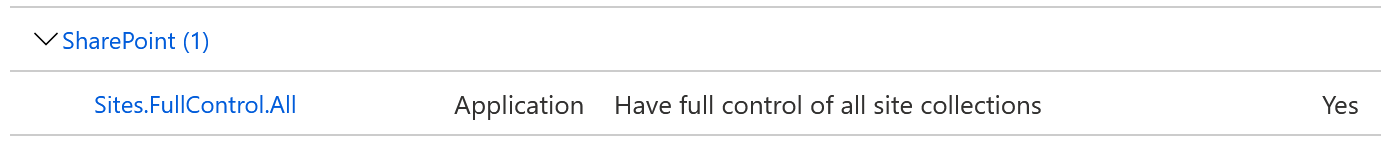

Application should be given proper API permissions as well. An example of full permissions provided below:

clip333444094

Troubleshooting



Cannot contact web site 'https://xxx.sharepoint.com/' or the web site does not support SharePoint Online credentials. The response status code is 'Unauthorized'

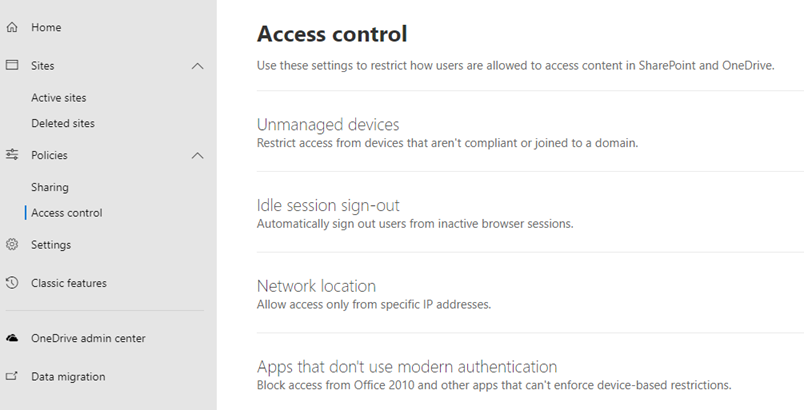

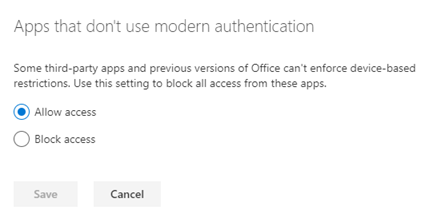

Allow access for Apps that don't use modern authentication.



clip008sdfsdfdfsdfs5

clip00fdgdfgdgfdgf85
