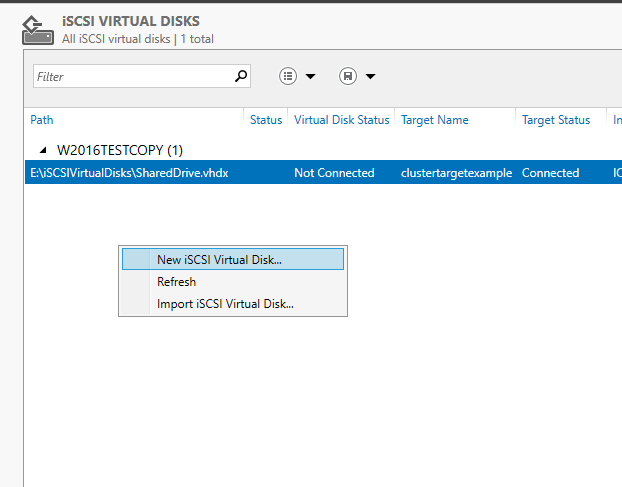

In the Server Manager > File and Storage Services > iSCSI, make a right click and inside context menu press to the “New iSCSI Virtual Disk”.



Hf1-ovP2SOktZ4uI2zbso8Tbt-7LgeqHZ_89P-74uDGtO8OqgDGzvlzsRnh2uDfCY0X-x7GqHK1aLmD7K8D_J1j-tS-urT4Vm1pDuK62uv-bNEhiY20QW6kT6J6LXv5gCcpMi9LK

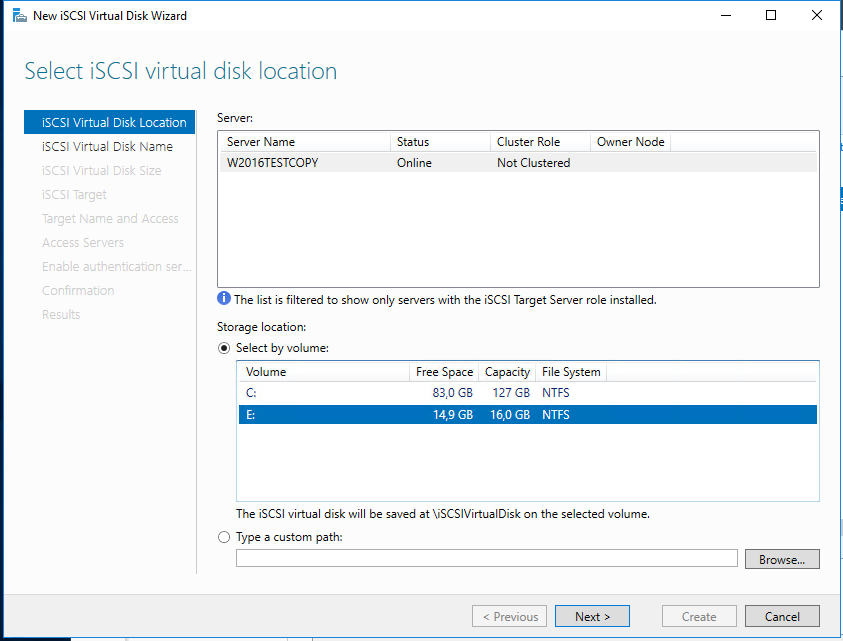

The New iSCSI Virtual Disk Wizard window is displayed.

Selec Disk that you want yo use as location for iSCSI Virtual Disk

Click Next.

F50rRP4WuD9-odbiv85R6oyund4fMn6TWeX-IKx79CVuQvic3N9-g3yn-hGseBIb1gR5_kLMHREmZ2CukT26kgeYu5uYxbj8ret_GcsMrgNvDDqNCGinWdDJl7B30uAerv4_-DuD

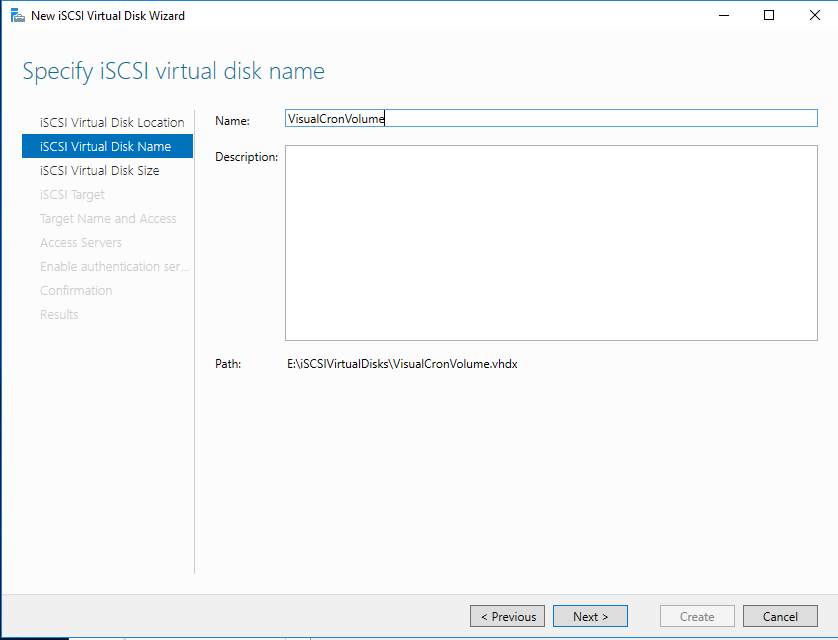

The Specify iSCI virtual disk name will be displayed.

Choose disk name, add description if it’s needed and click Next.

62FBBCbW1Rhmt8vddlMsnmfFkeff_PD7N1i3AN5ygApZV0FKNK3aV-AM5k70F25J0_MD-4uEw6xW8Ca4WlZ1nbodmp4kEGkSIYbbk-xoH4nA5CKXAkq0APfRxf7M_QAml9Sepkzj

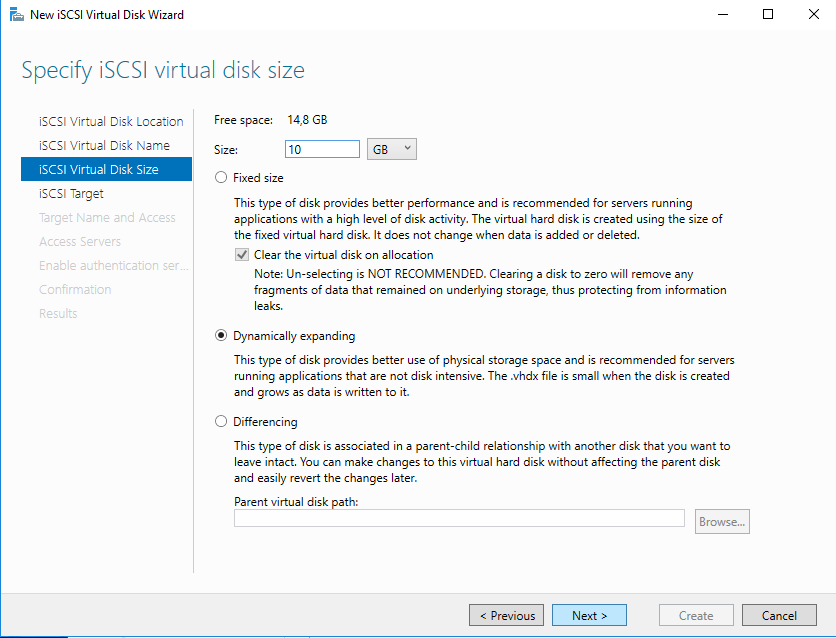

The Specify iSCSI virtual disk size window will be displayed.

Type size of a disk. Click Next.

Karpj9y8bDOt1eZCiT9ct_mB9uRH_vStbV44MKsvdFjkEiPdIM7m4QqgNwq8MI6FRz0F14tPzDLoy7ydh6qTEagSX63brTlJtPD9bIncPWkZS_LJz0ctOxQtrkIr9v50xQRxJbA9

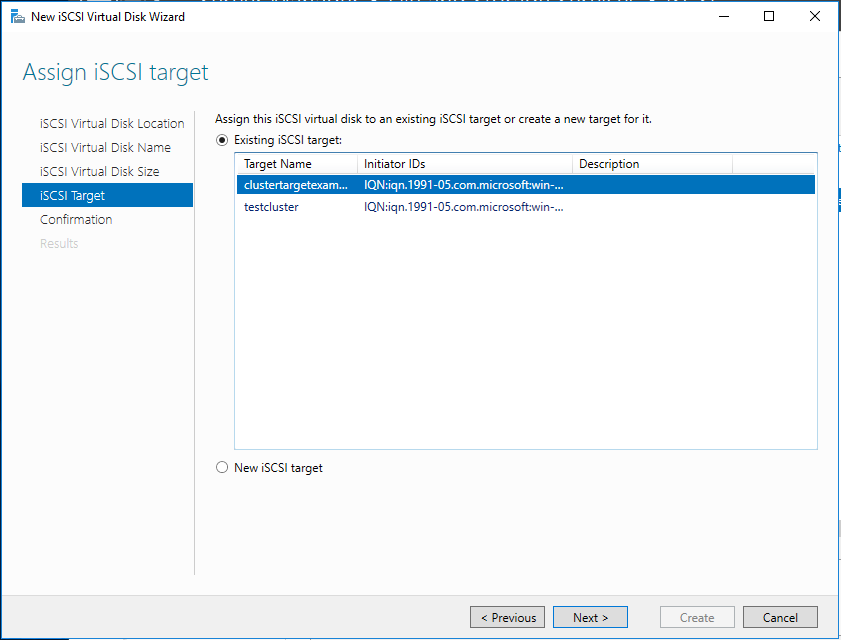

The Assign iSCSI target window is displayed.

You need to select already existed target that use access rights for your nodes.

LYVoEsn-YiLkoUUZ22YLXAK2qRBvXQA_Ds1kRVPr8Cd_bduAaeHA0A_bOU8M8wrMgWvmKhGTiv9UyUhGYNj1uZvYX0GJ1e5ScHXr-9GZwJHPDG5Vo_kLLdXrskmOmjRdVi9EQUYC



Choose Already existed iSCSI target , click Next.

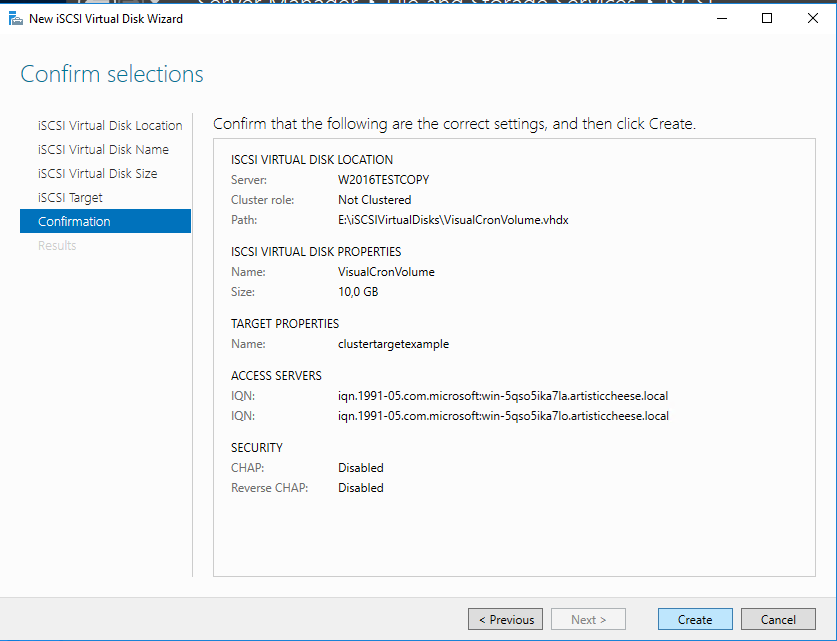

The Confirm selections windows is displayed.

JDUnB-n985PCnx-vr97rplTeEWzaQBIr8yjhy5ns3JOtG9gwvR6osWdBa2e7G8BxkoJ1fzv-4cRah6mwoytqYMqhhHdc3OCHc9BtYd7TmYB3Z6mQRmUjRkasfTfXp4RcvUmRoib4

You can check all iSCSI settings that you selected before. After that click Create.

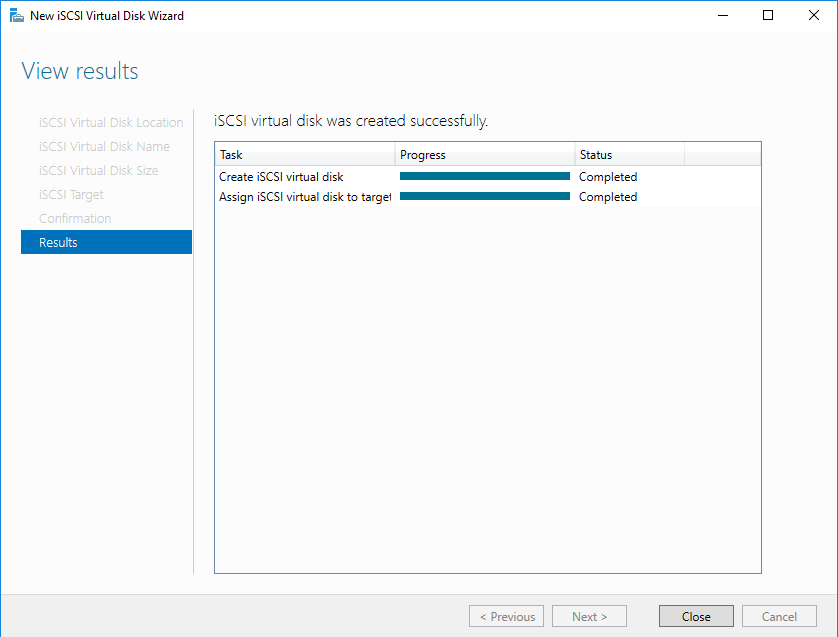

The Results windows will be displayed. After Creation will be succeed click Close.qlY7KLFs5bGpHQKBWLlTdrAwD70IKtdL5JIZ1Mh6vxx5xLGu4tZO3ydK-En5qP1OtN3TDRxzsa4KixNGtDX67sTuE6iOjW1-vssW5E9UAoLlvBwiz4GUV4mJwIZqIO_IPvSOctM4

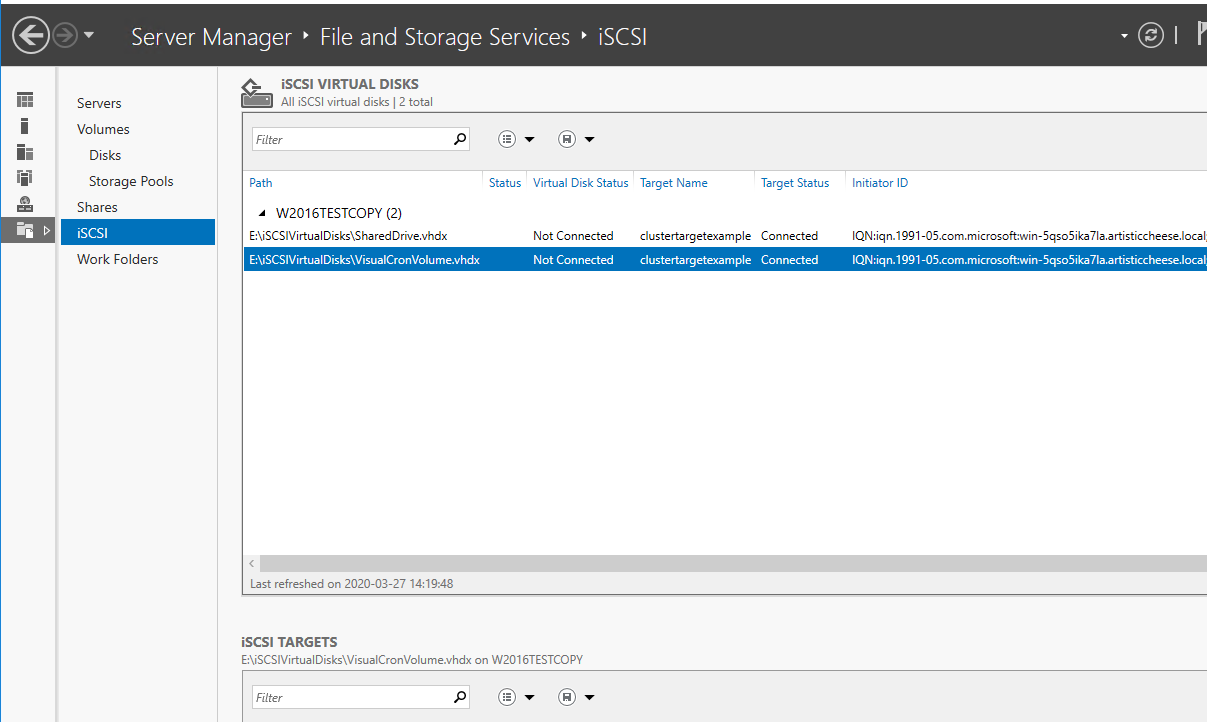

Now you can see new iSCSI virtual drive.

sQ2chMopWDIlQRSr6E7N1ckIBY-uVfLo6_IF6PRh2qmfpxYroMlkmO_M_RZxTRGhnJn97Li1uI2CQXqw1HLVNE6zUFwvIK7r1lyy0xWH9UN-pDZUZaCCbh5ZBZIVj8LFRcCpWNTK
