The PGP - encrypt Task lets you encrypt one or more files using OpenPGP standard. You can either encrypt with PGP keys or plain password. Optional signing is also provided.



General PGP information is available.



The PGP Task is selected in the Add/Edit Task window by Encryption -> PGP. In the Main settings tab a name for the Task is entered.



PGP Encrypt > File filter > Location sub tab

In the File filter tab you define which files should be encrypted. Read more about file filter here.

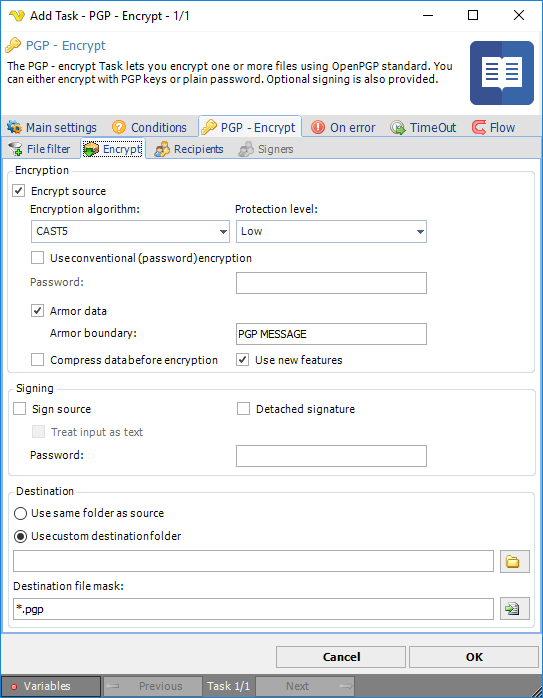

PGP Encrypt > Encrypt sub tab



Here you have two major options when encrypting a file; either Encrypt, Sign or both.



Encrypt source

Mark this option to enable encryption of your file. The Recipients tab is connected to this property.



Encryption algorithm

VisualCron offers some standard algorithms. If you need any other algorithm then contact us.



Protection level

•"Low" - to get the key from password only, password hash is used

•"Normal" - hash from password and salt concatenation is used

•"High" - hash from multiple password and salt concatenation is used



Use conventional (password) encryption

A password will be used for encryption. Enter a password in the password field. You can use this for doing simple symmetric encryption without key rings.



Armor data

Use this property to determine if resulting data should be armored, i.e. wrapped into base64-cover.



Compress data before encryption

Specifies if the data should be compressed before encryption.



Use new features

Use this property for compatibility with old versions of PGP-compatible software.



If this property is set to True, then newer and stronger algorithms will be used in this Signinng willl be compatible with PGP 2.6.x, while Encrypt and sign will not.



If the property is set to False, then the result will be compatible with PGP 2.6.x, while the keys are compatible (i.e. don't use features not supported by PGP 2.6.x). Default value is True.



Sign source

Mark this option if you want to sign your file. Use the this option along with selecting private key rings in the PGP -> Signers tab.



Treat input as text

Use this property when you want to specify that input data must be interpreted as text.



Password

If you have a password on your private key, then enter it here.



Destination file/Destination folder

The destination file is the path to the file where the encrypted file should be saved or, when using Decrypt, where the decrypted file should be saved. When using wild cards this field will become Destination folder and all source files will be appended with ".pgp".



Use default naming for destination file

When decrypting a file you can either specify a file name in the Destination file or use this property. When using this property the original name (from the PGP MESSAGE) will be used when writing the file. When this property is checked you can use Destination file for specifying another folder than the source file folder location.

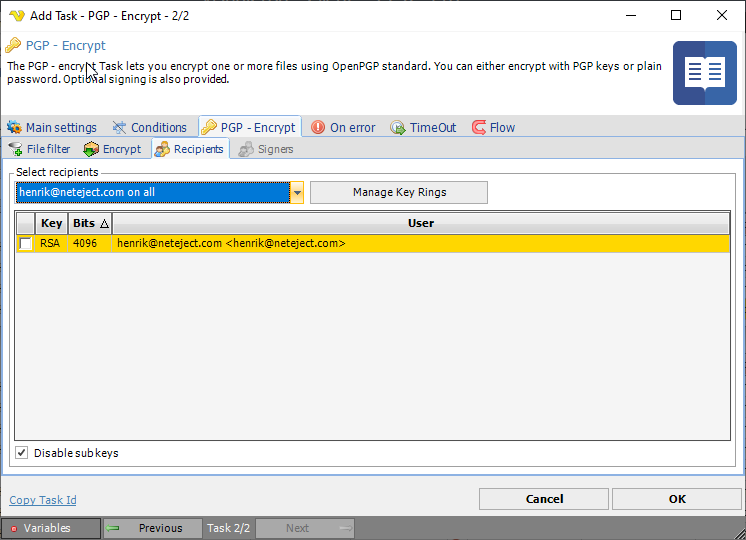

PGP Encrypt > Recipients sub tab



Specifies the key ring with public keys that belongs to the recipients of the file. Select a key ring, then mark the (public) keys that belongs to a recipient of the file.



Disable sub keys

Note: in certain scenarios, especially where heavy multi-subkey structures are used, there might be a need to specify the exact subkey to be used for encryption. While VisualCron (SBB component) does its best to find the appropriate encryption key or subkey automatically, sometimes this is not possible due to lack of information stored within the keys. If unsure about the purpose of a particular primary key or subkey (i.e. whether it is signing-only, encryption-only or both encryption and signing capable), SBB always uses it for encryption. As a result, the resulting file may be encrypted with multiple keys, which might be confusing for the receiving software. You can tell TElPGPWriter that it must not encrypt the file for a particular key or subkey by setting its Enabled property to false. https://cdn.nsoftware.com/help/legacy/sbb/ref_howto_pgp_files_encryptkey.html

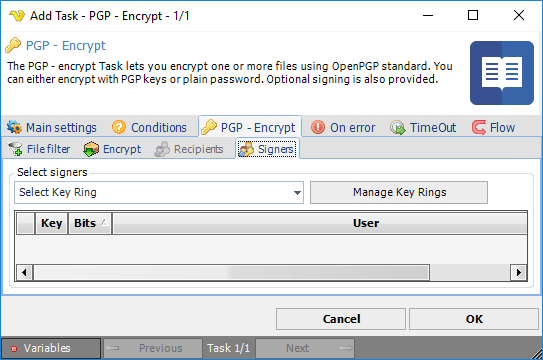

PGP Encrypt > Signers sub tab



Specifies the key ring with keys which must be used for data signing. Select a key ring, then check the (private) keys you want to use for signing.



Key rings are managed in the PGP -> Recipients or the PGP -> Signers tabs by clicking on Manage Key Rings button. In the Manage PGP Key Ring window, click on the Add button to open the Add PGP Key Ring window. More information is available for manage PGP key rings.



Disable sub keys

Note: in certain scenarios, especially where heavy multi-subkey structures are used, there might be a need to specify the exact subkey to be used for signing. While VisualCron (SBB component) does its best to find the appropriate signing key or subkey automatically, sometimes this is not possible due to lack of information stored within the keys. If unsure about the purpose of a particular primary key or subkey (i.e. whether it is signing-only, encryption-only or both encryption and signing capable), SBB always uses it for signing. As a result, the resulting file may be signing with multiple keys, which might be confusing for the receiving software. You can tell TElPGPWriter that it must not encrypt the file for a particular key or subkey by setting its Enabled property to false. https://cdn.nsoftware.com/help/legacy/sbb/ref_howto_pgp_files_encryptkey.html



Troubleshooting

The encrypted file gets signed twice

Try to check Disable sub keys under Signers tab.



No suitable OpenPGP public key for encryption found

Try to uncheck Disable sub keys under the Recipients tab.
