The main menu Tools > Flow chart > Flow chart option lets you view the internal steps within a Job. There are many ways to control the flow between Tasks. The Flow charts shows Triggers, Conditions, Tasks and Notifications.



Tools > Flow chart > Flow chart



Job selection

In the Jobs selection drop-down list shows you select which Job you would like to explore.



Refresh button

Refreshes the current view.



Show/Hide objects

In this menu you can check/uncheck which objects (Triggers, Conditions, Notifications, On error and Legend) the chart will show.



Show grid

Enables or disables the background grid.



Print preview

Opens the print preview window.



Page setup

Shows the printer page setup window.



Select printer

Opens the printer selection window.

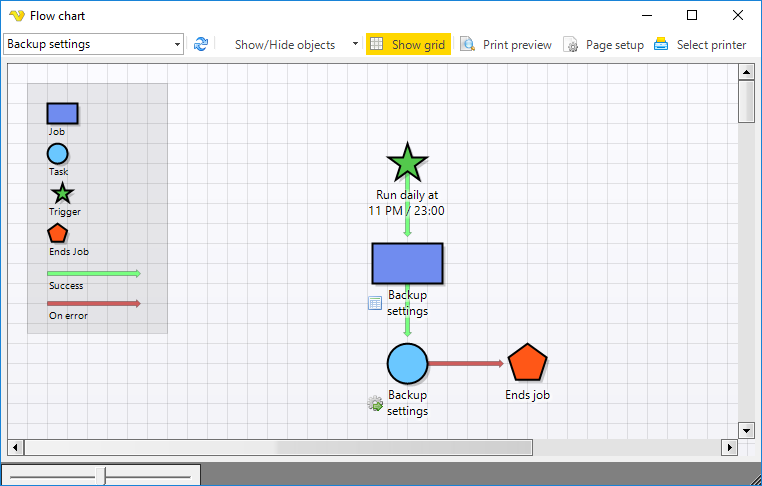

Flow chart

The flow chart window includes the objects that is displayed in the top left area. A flow chart is drawn from top to bottom.

The following action can be performed:

•open an object for edit by double clicking on it

•hide a specific object type by right clicking on it and choose hide

•hover over each object (and arrows) to see details



Permission

To block a user from viewing the Job report you need to disable the Jobs Read property in User permissions > Groups.
