Load balancing Conditions can be used in several different VisualCron components:



Load balancing Broker (Scheduler switch condition; Server Agents filter)

Load balancing Flows

Server Health (user changes are not supported)

Variable Trigger





Editing Load balancing Conditions



All Load balancing Conditions are created and edited using a single form consisting of two tabs.

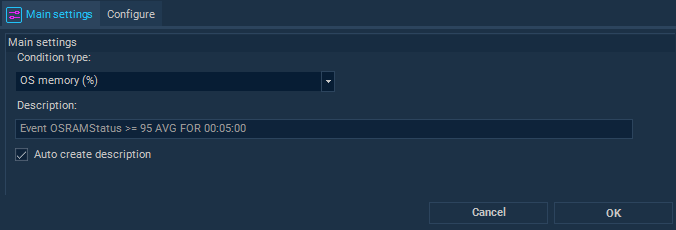

On the first tab, the basic properties are configured: condition type and description.

LBConditionEdit_Main

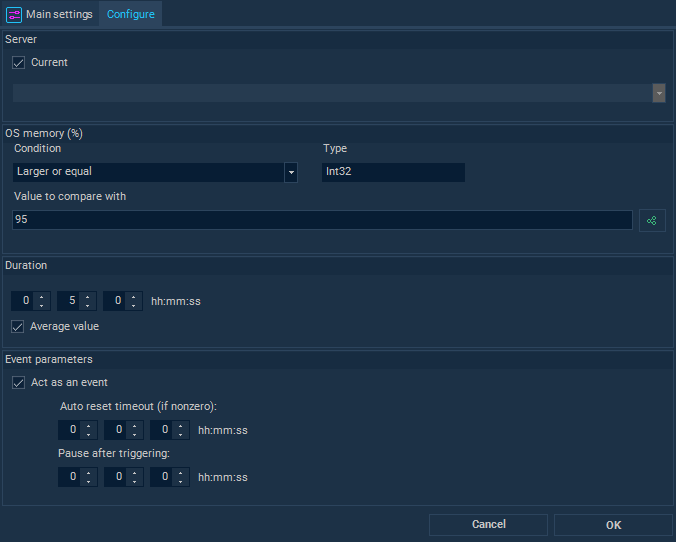

On the second tab, special properties for a particular type of condition are edited.

LBConditionEdit_Configure



Depending on the condition type, the following property groups can be edited:



select Server

select Job

select Connection

select Network

select Time exception

select Variable

select file

select process

select Windows service

operand and value to compare with

duration, including average checkbox

act as an event (for state-check conditions)

event parameters (for event-based conditions)





Condition classification



All Conditions can be divided into two groups: conditions that check some state, and conditions that react to some event in the system.



State-check Condition example: the value of the Variable “TestNumber” is “42“.

Event-based Condition example: the value of the Variable “TestNumber” has been updated.

Finally, an example of the state-check Condition acting as an event: the value of the Variable “TestNumber” has been updated and became equal to “42“.

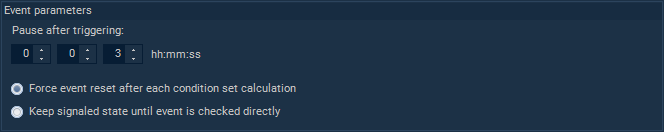

Configuring parameters of an event-based Condition

LBConditionEdit_EventBased



Pause after triggering

The period after previous triggering when the event generation is suppressed.

If an event occurs in the system before the suppression period has ended, the event will be ignored (see below the difference for state-check conditions).



Force event reset after each condition set calculation (the default)

The state will be set to nonsignaled when calculating the entire condition tree, regardless of whether the event is checked directly or not.



Keep signaled state until event is checked directly

The event will remain in the signaled state until it is checked directly during condition calculations.

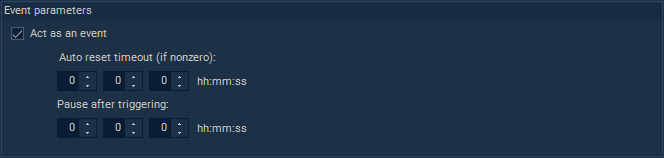

Configuring parameters of a state-check Condition acting as an event

LBConditionEdit_EventLike



Act as an event

The next match of the state-check condition is possible only after an unmatched state is detected or reset timeout expires.



Auto reset timeout

If nonzero, the condition can trigger again after the specified timeout, even if the state matched all the time.

Takes precedence over the “pause after triggering” period, that is, can reduce the suppression period.



Pause after triggering

The period after previous triggering when the event generation is suppressed.

However, if while waiting for the end of the suppression period, the state changes to non-matching, and then changes back to matching, then immediately after the end of the suppression period, the condition will be triggered again.





The list of supported Load balancing Conditions



Abbreviations:

Flows - Load balancing Flows

Broker - Load balancing Broker

Health - Server Health

N/A - not yet available





Description

Display name

Supported modes

Additional features

Used in components



Server statistics counters

VC Server CPU (%)

VCServerCPUStatus

state / event

duration, average

Flows, Broker, Health

OS CPU (%)

OSCPUStatus

state / event

duration, average

Flows, Broker, Health

VC Server memory (%)

ServerRAMStatus

state / event

duration, average

Flows, Broker, Health

OS memory (%)

OSRAMStatus

state / event

duration, average

Flows, Broker, Health

Used VC Server Drive space (%)

DiskSpaceStatus

state / event

duration

Flows, Broker, Health

Daily Server uptime (%)

ServerUptimeStatus

state / event


Flows, Broker

Maximum [last minute] response time (ms)

MaxResponseTime

state / event

duration

Flows, Broker

Total running Jobs

TotalRunningJobs

state / event

duration, average

Flows, Broker



Job statistics and states

Total # running same Jobs

TotalRunningSameJobs

state / event

duration, average

Flows

Job is running

JobIsRunning

state


Flows

Job runtime

JobRunningTime

state / event

duration, average

Flows

Job status

JobStatus

state / event


N/A



Log database

LogDB size (kB)

LogDBSize

state / event


Flows

LogDB fragmentation (%)

LogDBFragmentation

state / event


Flows



Time Exceptions

Time Exception collection matches

TimeExceptionMatches

state


Flows

Time Exception occurred

TimeExceptionEnter

event


N/A



Broker connections

VC Server is connected

VCServerIsConnected

state


Flows

VC Server connected

VCServerConnected

event


Flows

VC Server disconnected

VCServerDisconnected

event


Flows

VC Server is responding

VCServerIsResponding

state


N/A



Connections API

Connection is active

ConnectionIsActive

state


N/A

Number of Connection instances

ConnectionInstances

state


N/A



Networks API

Network is connected

NetworkIsConnected

state


Flows

Network connected

NetworkConnected

event


Flows

Network disconnected

NetworkDisconnected

event


Flows



Health API

Health status

HealthStatus

state / event

duration

Flows, Broker



Variables

Variable value

VariableValue

state / event

duration, average (for numerics)

Flows, Variable Trigger

Variable value changed

VariableValueChanged

event


Flows, Variable Trigger



External processes

File status

FileStatus

state / event

duration

N/A

Process status

ProcessStatus

state / event

duration

N/A

Process CPU (%)

ProcessCPUStatus

state / event

duration, average

N/A

Process terminated

ProcessTerminated

event


N/A

Windows Service status

WinServiceStatus

state / event

duration

N/A



Degenerate cases

Default (success)

Any




Flows, Broker

Default (failure)

None




Flows
