The VMWare Connection stores connect and logon properties for guest and remote VMWare instances.



The VMWare Connection is used for connecting to remote VMWare instances in the following Tasks:

VMWare - Start VM

VMWare - Stop VM

VMWare - Suspend VM

VMWare - Pause VM

VMWare - Resume VM

VMWare - Reset VM

VMWare - Get VM status

VMWare - Create VM snapshot

VMWare - Revert to VM snapshot

VMWare - Delete VM snapshot

VMWare - List VM snapshots

VMWare - Delete VM

VMWare - Clone VM

VMWare - Install tools

VMWare - Register VM

VMWare - Unregister VM

VMWare - List VM

VMWare - Capture screen (guest)

VMWare - Copy files (guest)

VMWare - Rename file (guest)

VMWare - Delete files (guest)

VMWare - Directory exists (guest)

VMWare - File exists (guest)

VMWare - Delete directory (guest)

VMWare - Create directory (guest)

VMWare - Create temp file (guest)

VMWare - Run command (guest)

VMWare - Open URL (guest)

VMWare - Kill processes (guest)

VMWare - List processes (guest)

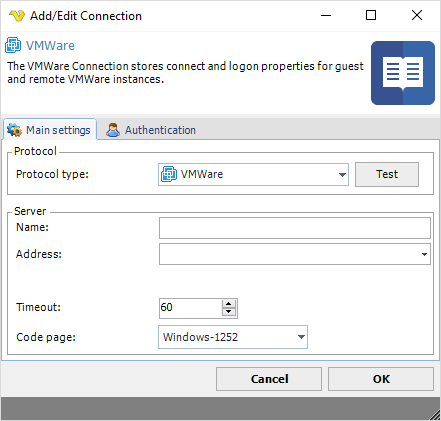

Manage Connections > Add > VMWare > Main settings tab

ConnectionVMWareMain



Name

The unique name for the Connection



Address

The address to the VMWare server.



Timeout

The connection timeout in seconds. Connection will fail after this time period.



Code page

Code page being used.

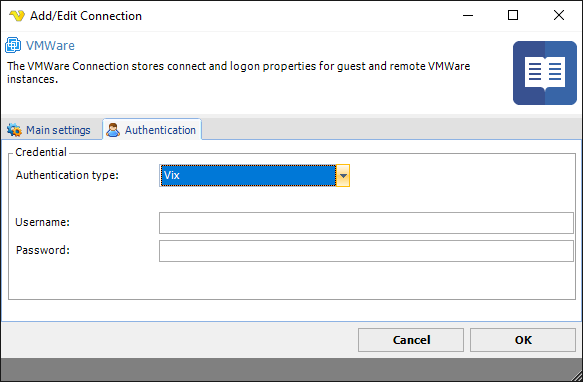

Manage Connections > Add > VMWare > Authentication tab

vmwareauth



Authentication type

Choose between VIX or vSphere. VIX stands for the old API that uses COM libraries to manage vSphere. This is supported up to version 6.0 of vSphere. For future version the new vSphere API is used which is based on web services. The VMware vSphere® Web Services SDK includes all the components necessary to work with the VMware vSphere API, including WSDL files, sample code, and libraries. The vSphere Web Services SDK facilitates development of client applications that target the VMware vSphere API. With the vSphere Web Services SDK, developers can create client applications to manage, monitor, and maintain VMware vSphere components, as deployed on VMware® VMware vSphere® ESX®, ESXi™, and VMware® vCenter™ Server systems.



Username

The username for the server.



Password

The password for the server.





Troubleshooting

The protocol requested by peer '0 0 9 1' does not match expected '3 1 0 0'. Make sure both sides agree on protocol id and version.

Please upgrade remote server to AMQP 1.0. VisualCron supports AMQP 1.0 or later.
