The SMTP Connection stores connect and logon properties for Simple Mail Transfer Protocol (SMTP). SMTP is used for sending email.



About SMTP

Simple Mail Transfer Protocol (SMTP) is an Internet standard for electronic mail (e-mail) transmission across Internet Protocol (IP) networks. SMTP was first defined by RFC 821 (1982, eventually declared STD 10), and last updated by RFC 5321 (2008) which includes the Extended SMTP (ESMTP) additions, and is the protocol in widespread use today. It is an Application Layer protocol in the OSI reference model.



SMTP uses TCP port 25. The protocol for new submissions (MSA) is effectively the same as SMTP, but it uses port 587 instead. SMTP connections secured by SSL are known by the shorthand SMTPS on TCP port 465, though SMTPS is not a protocol in its own right.



While electronic mail servers and other mail transfer agents use SMTP to send and receive mail messages, user-level client mail applications typically use SMTP only for sending messages to a mail server for relaying. For receiving messages, client applications usually use either the Post Office Protocol (POP) or the Internet Message Access Protocol (IMAP) or a proprietary system (such as Microsoft Exchange or Lotus Notes/Domino) to access their mail box accounts on a mail server.

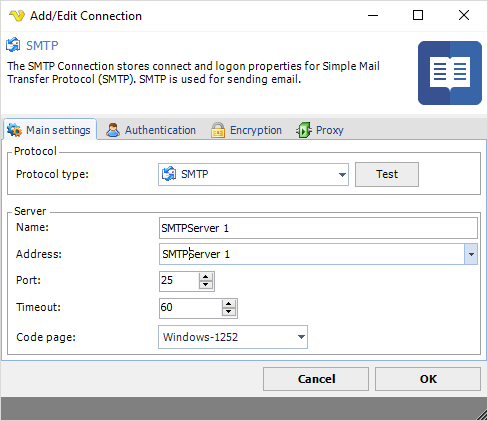

Manage Connections > Add > SMTP > Main settings tab

ConnectionSMTPMainsettings



Test

It is possible to test the connection once you have set all settings. Click the Test button to start the test.



Name

The unique name for the Connection.



Address

The DNS name or IP address of the SMTP server.



Port

The port used by the SMTP server. Please note that it should match the port of the encryption. Normally encrypted connections uses port 465 or 587 while SMTP servers with no encryption uses port 25.



Timeout

The connection timeout in seconds. Connection will fail after this time is passed.



Code page

The table of values that describes the desired character set. Currently this is overridden by the code page in the Task.



Default settings for some servers:

Exchange

Main settings
Address: yourservername
Port: 587


Encryption

Cryptographic protocol: TLS
Security Mode: Implicit



Office 365

Main settings

Address: smtp.office365.com

Port: 587



Encryption

Cryptographic protocol: TLS (1.2)

Security Mode: Explicit



Gmail

Main settings

Address: smtp.gmail.com

Port: 465



Encryption

Cryptographic protocol: TLS

Security Mode: Implicit



Amazon SES

Address: email-smtp.us-east-1.amazonaws.com OR your regionial Amazon SES address

Port: 465



Encryption

Cryptographic Protocol: TLS (1.2)

Security Mode: Implicit

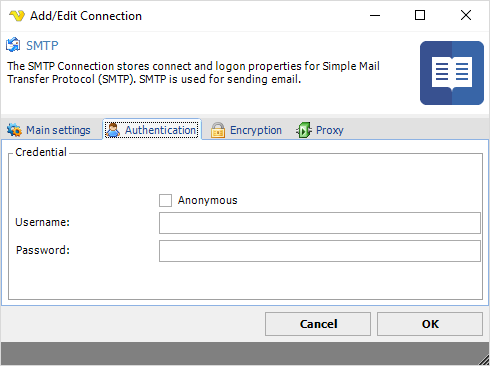

Manage Connections > Add > SMTP > Authentication tab

ConnectionSMTPAuthentication



Anonymous

Check this if you want to logon without providing user name and password.



Username

The user name for the email account.



Password

The password for the email account.

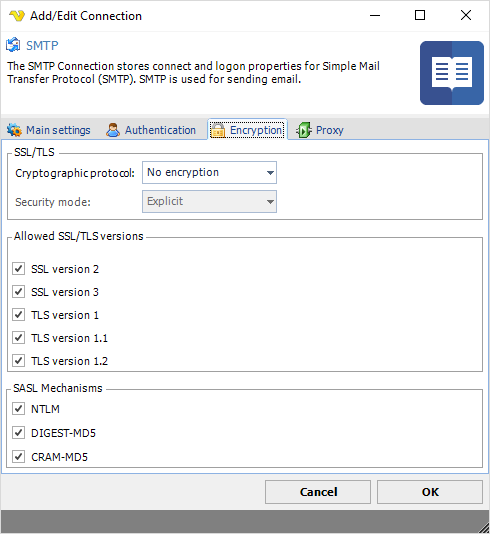

Manage Connections > Add > SMTP > Encryption tab

ConnectionSMTPEncryption



Cryptographic protocol

Encryption protocol to use; No encryption, SSL or TLS.



Security mode

Explicit or Implict encryption.



Allowed SSL/TLS versions

Some SMTP servers require certain versions of SSL/TLS. Check the versions that are allowed. Sometimes it is necessary to specify the specific allowed version.

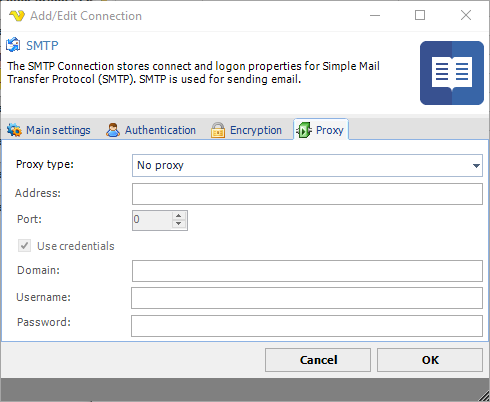

Manage Connections > Add > SMTP > Proxy tab

ConnectionSMTPProxy



Proxy type

Select the proxy type to be used.



Address

The host name or IP address of the proxy server.



Port

The port of the proxy server.



Use credentials

Text ...



Domain

The name of the domain to be created.



Username

The user name to access the proxy server.



Password

The password to access the proxy server.





Troubleshooting



No authentication method enabled from those supported by the server

Try checking Anonymous checkbox.



Error 96260 when sending email or clicking Test email

Use full DNS name or IP instead of just "servername".



User authentication failed: Unaccepted server reply for command AUTH PLAIN (Gmail)

You need to allow less secure apps to access your Gmail account

Google may block sign-in attempts from some apps or devices that do not use modern security standards. Since these apps and devices are easier to break into, blocking them helps keep your account safe.



To disable this security feature:



Sign in to Gmail

Click here to access Less Secure App Access in My Account.

Next to “Allow less secure apps: OFF,” select the toggle switch to turn ON.



This setting may not be available for:



Accounts with 2-Step Verification enabled: Such accounts require an application-specific password for less secure apps access.

G Suite users: This setting is hidden if your administrator has locked less secure app account access.

https://myaccount.google.com/lesssecureapps
