The SCP Connection stores connect and logon properties for the Secure Copy (SCP) protocol. The SCP protocol is a network protocol, based on the BSD RCP protocol, which supports file transfers between hosts on a network.



SCP uses Secure Shell (SSH) for data transfer and uses the same mechanisms for authentication, thereby ensuring the authenticity and confidentiality of the data in transit. A client can send (upload) files to a server, optionally including their basic attributes (permissions, timestamps). Clients can also request files or directories from a server (download). SCP runs over TCP port 22 by default. Like RCP, there is no RFC that defines the specifics of the protocol.



In VisualCron, the SCP Connection is used in the Net - FTP/FTPS/SFTP/SCP Task.

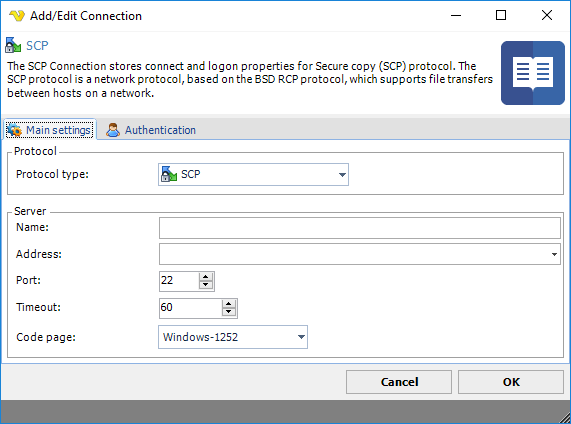

Manage Connections > Add > SCP > Main settings tab



Name

This is a descriptive name of the connection to distinguish from other connections.



Address

This is the host address to the server. It could be a DNS name or IP number.



Port

This is the remote connection port.



Timeout

The connection timeout in seconds. Connection will fail after this time is passed.



Code page

The table of values that describes the desired character set. Currently this is overridden by the code page in the Task.

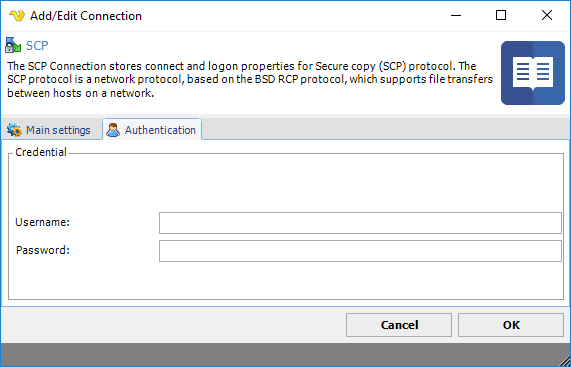

Manage Connections > Add > SCP > Authentication tab



Username

The user name for the connection.



Password

The password for the connection.
